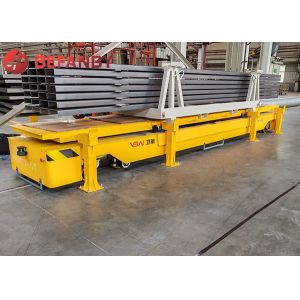

Remote Control Q235 Mold Transfer Cart , 25 Tons Bay To Bay Die Change Cart
These trackless mold transfer cart have been conceived and built to realize their utmost working flexibility.Because they have no predefined path and can steer in any direction and move on any kind of floor. And these transfer cart are very useful to bring the heavy loads where overhead cranes cannot arrive.
2019 China steerable battery powered material handling trackless electric transfer cart
The features as following:
- The transfer cart is battery powered, they represent the best solution for all those appliances with delicate handling problems in limited places.(360 degree turning flexibly)
- The trackless transfer cart is very flexible since it can move freely around the plant as indoor as outdoor.
- It is equipped with non-marking wheels to avoid any mark on floor.(Imported PU wheel or customized)
- Easy operation make transfer cart perfect to meet the most important requirements: where space is very limited and paths are strictly constrained.
Remark: Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request.
Technical Parameter
| Model | BWP-10t | BWP-20t | BWP-40t | BWP-60t | BWP-80t | BWP-100T |
| Rated Load(t) | 10 | 20 | 40 | 60 | 80 | 100 |
| Table size(mm) | Length(L) | 2300 | 2400 | 5000 | 5600 | 6500 | 6600 |
| Width(W) | 2000 | 2200 | 2500 | 2500 | 2800 | 3300 |
| Height(H) | 550 | 600 | 800 | 850 | 950 | 1200 |
| Wheel Base(mm) | 1650 | 1650 | 2000 | 1800 | 1950 | 2000 |
| Axle Base(mm) | 1700 | 1850 | 3600 | 2900 | 3500 | 4000 |
| Wheel Diameter(mm) | 350 | 400 | 500 | 600 | 600 | 600 |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 6 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | 75 |
| Running Speed(m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 2*2.2 | 2*3.5 | 2*6.3 | 2*10 | 30 | 40 |
| Battery Capacity(Ah) | 250 | 330 | 440 | 600 | 800 | 1000 |
| Battery Voltage(v) | 48 | 48 | 72 | 72 | 72 | 72 |
| Max Wheel Load(kn) | 42.6 | 77.7 | 142.8 | 221.4 | 185 | 190 |
| Reference Weight | 4.2 | 5.9 | 7.6 | 10.8 | 14.6 | 26.8 |
Products Features
Brief introduction----BEFANBY'S Advantage
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Brief introduction----BEFANBY'S Certificate
Our customers
Attend the trade fair every year
Brief introduction
You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.
1. The load capacity of the transfer cart is ( ) ton.
2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).
3. The voltage is ( ) V, ( ) HZ, 3 phase.
4. The running time is ( ) hours per day.
5. The running distance is ( ) m per time.
6. The transfer cart runs on the rails or common floor?
7. Whether exist turning?
8. Whether has other special requirement?
Our After Service
- Our commitment:
- The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
- 16 hours engineering service and 24 hours internet service for our customers
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
Product Tap: Steerable Transfer Cart, Motorized Transfer Cart
